A band has a new logo, a show is approaching, and the front of the kick drum still looks unfinished. The logo appears sharp on a phone, so it gets uploaded to an online bass drum head designer. Then the printed head arrives with soft edges, cramped lettering, and a microphone port cutting through the artwork. The problem usually isn’t the designer. It’s the production preparation behind the upload.
A custom bass drum head has to work as a circular print, a visible stage graphic, and, in many cases, a functional resonant head with a microphone opening. The strongest results come from treating the browser-based designer as a production tool, not a quick filter. Size, head type, file quality, bleed, contrast, port geometry, and material all need to agree before the order is approved.
Why Your Bass Drum Head Design Needs a Proper Workflow
A low-resolution logo can look perfectly acceptable on a monitor because the screen displays it at a small size. On a bass drum, that same file is enlarged across a much larger surface. Curves become jagged, thin lettering loses authority, and fine details that seemed intentional turn into muddy shapes.
This is especially frustrating for a gigging band that has already paid for artwork, or for a teacher ordering coordinated heads for a school ensemble. A worship team may need the same visual identity at different venues, while a touring act needs a head that stays readable under changing lighting and viewing distances. A casual upload doesn’t account for those conditions.
The difference between a graphic and a print file
A print-ready design starts with the correct physical head size, then places artwork inside the available circular area. Logos and type should remain in vector format wherever possible, because vector shapes scale cleanly. Raster images need to be prepared at 300 DPI at final size, a benchmark identified in custom bass drum head artwork guidance.
The designer helps with placement, scaling, and previewing, but it can’t turn every poor source file into a clean one. Social-media exports, screenshots, and compressed images often contain too little information for a large print. Critical text positioned close to the hoop can also become visually cramped, even when the file itself is technically sharp.
Practical rule: If the artwork only looks good when viewed small, it isn’t ready for a large circular print.
A reliable workflow confirms the drum diameter, selects the front or batter surface, prepares the artwork, leaves room for the port, and checks the mockup at full scale. Readers who want to compare ordering considerations can also review this guide to choosing a custom drum head printing company. For teams that produce graphics regularly, a resource covering factory-ready product specs can help clarify how design decisions move into manufacturing.

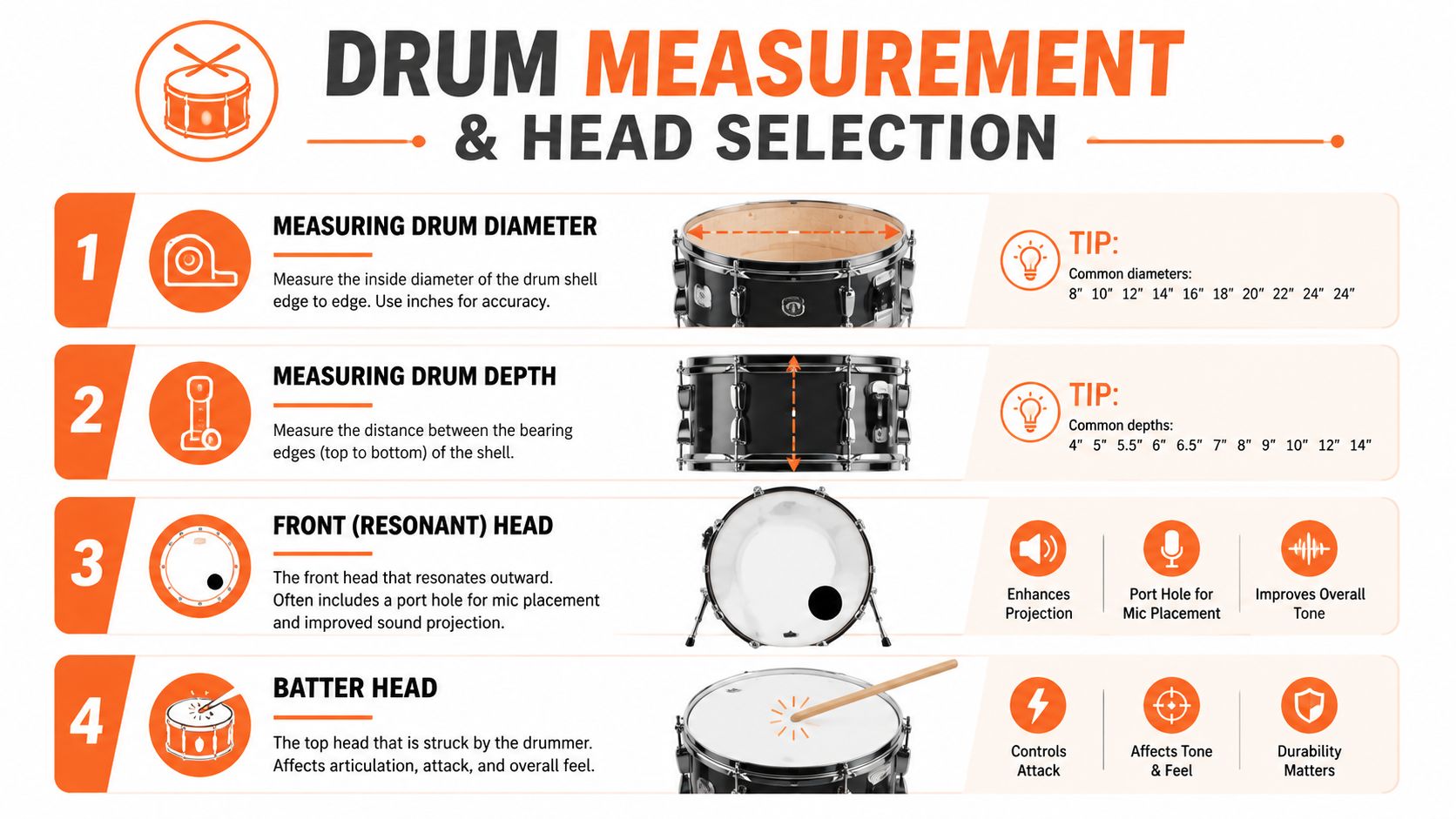

Measuring Your Drum and Choosing the Right Head Type
The correct bass drum head size comes from the diameter of the drum shell, not its depth. A 22-inch bass drum takes a 22-inch head, while the shell depth describes how far the drum extends from front to back. Custom bass drum heads are commonly available from 16 inches to 32 inches, with front and batter options, so the print layout must match the exact diameter selected at checkout. Size and head-type information for bass drum heads provides useful context for that range.
Measure the shell before opening the designer
Remove the existing head if possible and measure straight across the shell from inner edge to inner edge. Don’t rely only on the printed size of the old head, especially if the head is damaged, stretched, or from a different setup. The custom drum head measurement guide explains the measurement process in more detail.
Depth still matters for packing, setup, and the overall appearance of a kit, but it doesn’t determine the replacement head diameter. A shallow touring shell and a deeper stage shell can use the same diameter head, which means the same artwork may fit both, provided the front surface and port requirements match.
Choose the surface before designing the composition
A resonant head faces the audience and is usually the better choice for a prominent logo, band identity, studio branding, or event graphic. Because it is visible from the front, the designer needs to reserve clear space for any microphone port and maintain strong contrast across the print.
A batter head is the playing surface. It may suit a drummer who wants personalization visible during setup or who needs a matching visual treatment across a kit, but it faces more physical wear. A school marching line, touring backline, and church kit may each demand different priorities. The front head generally emphasizes presentation and front-of-house practicality, while the batter head places greater emphasis on contact durability.
Before artwork is uploaded, the buyer should record:
- Shell diameter: Measure across the shell, not along its depth.
- Surface choice: Decide whether the design belongs on the resonant or batter head.
- Port requirement: Confirm whether the front head needs an opening.
- Visual boundary: Keep essential text and logos away from the hoop and port area.
That short checklist prevents the most expensive design error, creating a beautiful file for the wrong head.

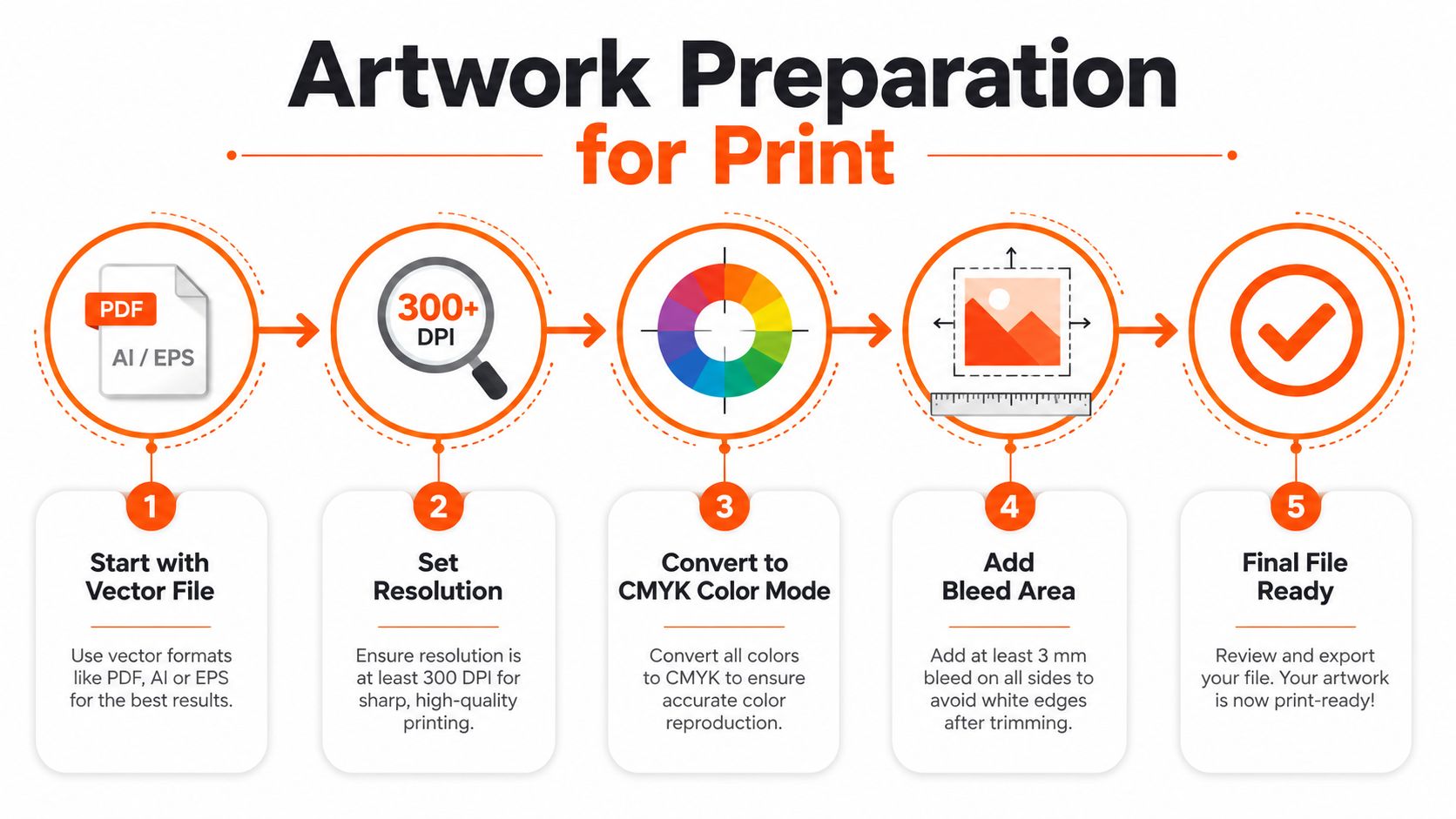

Preparing Artwork That Actually Prints Well
The online designer can scale and position an upload, but it can’t replace a properly built source file. The cleanest starting point for logos, lettering, and line illustrations is a vector file, such as PDF, AI, EPS, or SVG. Vector artwork keeps edges defined as the design expands across the head. Custom artwork file guidance identifies these formats as suitable choices for logos and text.
Photographs, painted textures, and other raster artwork can work well, but they need enough information at the final print dimensions. A practical benchmark is 300 DPI at final size, not 300 DPI on a small source image that will later be enlarged. A screenshot of a logo may have a high-looking pixel count on a phone while still producing soft edges on the finished head.
Build for the circle, not the screen
A bass drum head isn’t a rectangular poster. Artwork near the outer edge can approach the hoop, curve away from the viewer, or become visually compressed by the rim. Logos with long horizontal lettering often need more breathing room than expected, while centered symbols can tolerate a tighter composition.
Bleed gives background color or texture room to extend beyond the intended visible area. The safe zone protects important information from getting too close to the hoop or any port cutout. These zones matter because small placement differences become obvious once the head is mounted and viewed under stage lighting.
A practical file check
Before uploading, the designer should inspect the file against a short production list:
- Use the master artwork. Avoid social-media exports, screenshots, and heavily compressed copies.
- Keep logos and type as vectors. This protects curves and letter edges during enlargement.
- Prepare raster images at 300 DPI at final size. Resolution should match the physical head, not just the monitor preview.
- Check contrast. Dark artwork on a dark head surface can disappear from normal audience distance.
- Allow bleed and safe space. Backgrounds can extend outward, but critical type should stay comfortably inside the working area.
- Inspect thin details. Fine lines and small text may lose clarity when printed and viewed from across a venue.
The custom artwork preparation guide can help buyers work through those decisions before placing the file in the designer. The goal isn’t to make the artwork complicated. It’s to make sure the design survives the change from a screen preview to a physical drum surface.

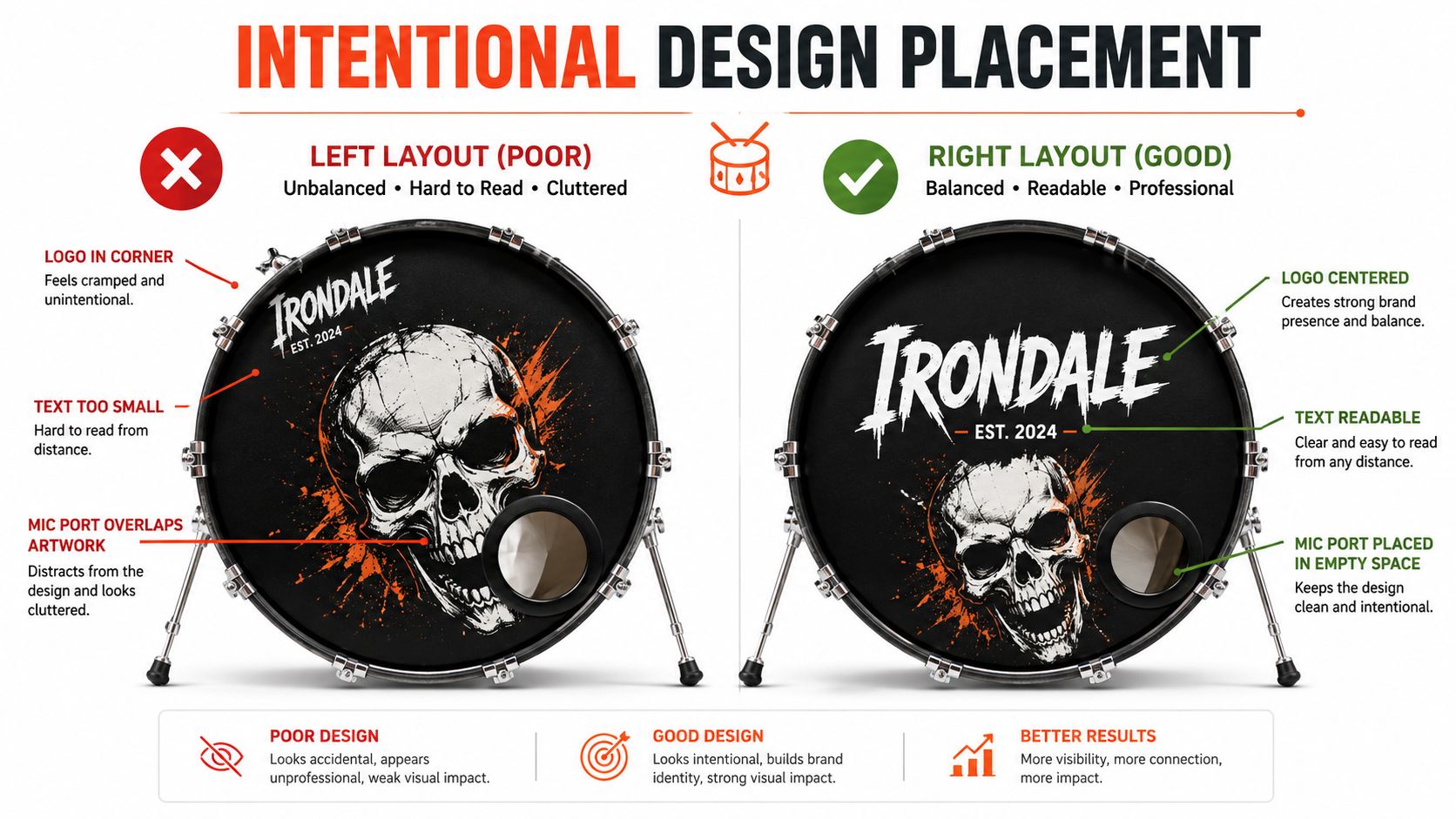

Placing Logos, Photos, and Mic Ports with Intention
A strong bass drum graphic leaves room for the drum to function. The logo, band name, photograph, and microphone port must share one circular composition, rather than competing for the same space. Centering a logo by habit can create a problem if the port later cuts through the most recognizable part of the design.
Ported resonant heads usually place the opening in the lower half, most often at the lower left or lower right. Center placement is discouraged because it can almost eliminate sustain, according to bass drum port placement guidance. The standard lower-side position also leaves the central branding area more intact.
Port geometry affects more than appearance
A common microphone port range is 4 to 5 inches, with 4 inches cited as a minimum and 7 inches as an upper practical limit in the same placement guidance. A smaller port can limit microphone access and adjustment, while a larger opening changes the open area and may remove more of the printed composition.
The port also becomes the default entry path for an inside microphone. Recording guidance explains that the opening affects placement flexibility, isolation, and low-end capture, so the choice shouldn’t be treated as a simple left-versus-right preference. A touring setup may favor a position that allows quick clip-on or stand adjustments. A worship or studio setup may prioritize repeatable placement between songs or sessions. The microphone placement guide offers further context for those practical decisions.
Design by use case
A band logo normally benefits from a clear central field, with supporting text placed below or above it. A photographic design needs enough uninterrupted image area to preserve the subject’s face, instrument, or focal detail. A school or church graphic may work better with large, high-contrast lettering that remains legible from the back of a room.
Before approving the composition, the buyer should move the port around the mockup and ask three questions:
- Does the opening remove a recognizable detail?
- Can a microphone reach the desired position without awkward obstruction?
- Does the remaining artwork still look balanced with the port installed?
A port is part of the design geometry, not an afterthought cut into finished artwork.
Choosing Materials and Finishes for Your Use Case
Material selection affects both the printed appearance and the way the head behaves over time. Modern synthetic films replaced hide-based construction because they provide greater consistency, reducing the weather, tuning, and supply variability associated with natural skins. The historical shift began in the early-to-mid 1950s, with Jim Erwin, a chemical engineer at 3M, recognized as the first to use Mylar as a drumhead and the Weather King later commercialized as the first successful plastic drum head, as described in the history of the drumhead.
For a custom buyer, the practical question isn’t which finish looks attractive in a product image. It’s whether the head needs to stay visually and acoustically consistent through humidity changes, repeated transport, frequent student use, or regular live setup.
| Material Type | Durability | Tone Character | Best For |
|---|---|---|---|
| Coated synthetic | Strong resistance to changing conditions and regular use | Controlled, textured presentation with a less reflective appearance | Touring, education, worship, and designs that need clear visual contrast |
| Clear synthetic | Consistent engineered surface with a bright visual finish | Open and direct presentation | Clean logos, photographic graphics, and setups where the printed image should look vivid |
| Hybrid or multi-ply synthetic | Designed for extended service and repeatability | More controlled response with added focus | Heavy use, backline environments, and buyers prioritizing longevity |
Market reporting identifies coated synthetic heads as the largest share at 38.5%, while hybrid heads are projected to grow at a 12.4% CAGR, driven by durability and resistance to humidity and temperature changes, according to drum head market analysis. Those figures don’t dictate the right purchase, but they show why engineered materials matter to buyers who need predictable results.
The wider drum heads category has also been estimated at USD 336 million in 2025, with one projection reaching USD 553 million by 2034 at a 7.4% CAGR. Another forecast estimates roughly USD 420 million in 2026 and about USD 690 million by 2034, with a CAGR near 6.4%, as reported in this drum heads market forecast. The estimates differ, so they should be treated as market context rather than a purchasing guarantee.
For print-focused buyers, the trade-off is total ownership. A slightly more suitable engineered head may make more sense than choosing solely by initial price when the design needs to remain consistent across tours, classrooms, services, or repeated events. Printing method also matters, so a buyer comparing options should understand the difference between screen-printed and direct-printed drum heads.
Reviewing Mockups and Approving Your Design
The mockup is the last practical checkpoint before production. A design can feel balanced in the editor and still reveal a spelling error, weak contrast, or port collision when viewed as a complete head. Approval should happen at a useful viewing size, not only as a tiny thumbnail.
Review in production order
First, confirm the diameter and make sure the artwork was built for that exact circular area. Next, lock the surface type, front resonant or batter, because the intended visibility and wear conditions change with the choice.
Then verify the port position and size. Look at the design with the opening mentally removed, especially if a letter, face, emblem, or important line passes near it. After that, inspect centering, bleed, edge clearance, and contrast.

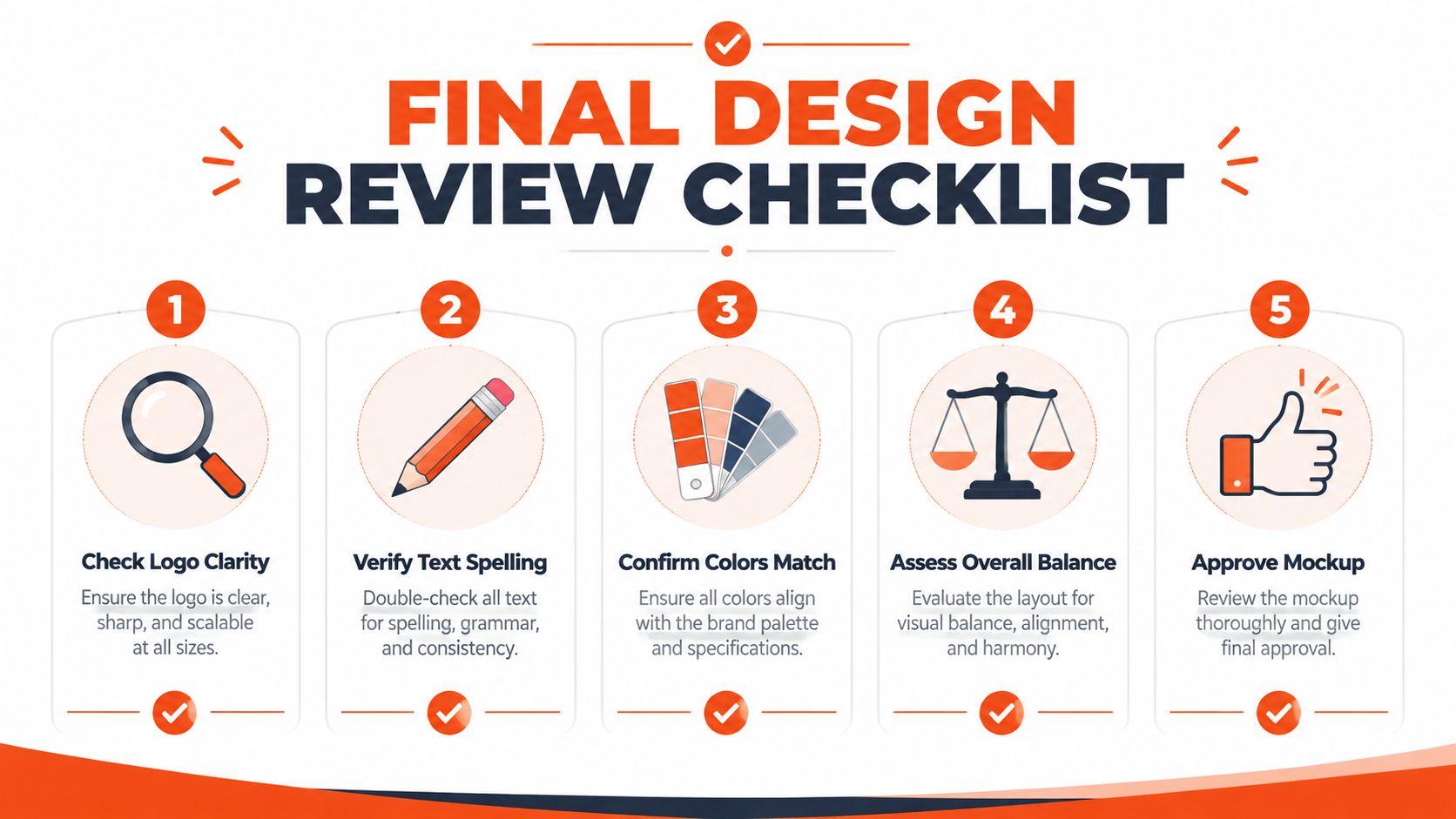

A final review should include:
- Logo clarity: Curves, small marks, and fine lines should remain clean.
- Text accuracy: Check spelling, capitalization, and any dates or event wording.
- Color balance: Make sure foreground and background separate clearly.
- Composition: Confirm that the logo, image, and port feel intentionally arranged.
- Full-size impression: Judge whether the design will read from the audience area, not just from a screen.
Visual mockup principles used for merchandise can also be explored through product mockups for merch, especially when a buyer needs to judge how a design reads on a physical product rather than a flat artboard.
Approval checkpoint: Once the mockup looks correct, save the final version and compare it against the original logo before confirming the order.
Ordering, Shipping, and Putting Your Custom Head to Work
A custom head should arrive before the event that gives it purpose. Touring bands can schedule around rehearsals and load-in dates, recording artists can order before a session, and schools or worship teams can coordinate a shared design before a new season or program begins. Most orders from Custom Bass Drum Head ship within a few business days, with worldwide delivery available and volume pricing for schools, worship teams, marching lines, and corporate clients.
The practical value of personalization extends beyond decoration. A clear band mark helps a kit read as part of the act, a teacher can create a consistent visual identity for an ensemble, and an event production team can use a branded head to make a backline look intentional. A well-prepared design also reduces the chance that a port, hoop, or low-quality source file will undermine the result.
When the head arrives, inspect the print before installation. Confirm that the diameter, artwork, port, and finish match the approved mockup. Store the head flat or safely supported during preparation, keep sharp objects away from the printed surface, and avoid treating the printed face like a disposable label. Direct printing creates the finished graphic on the drum head itself, so careful handling protects the visual work during setup and transport.
The browser-based Custom Bass Drum Head designer lets buyers upload artwork, scale and rotate it, position it on a live mockup, choose front or batter heads from 16 inches to 32 inches, and specify microphone-port placement. That combination makes it possible to handle the design and purchasing decisions in one workflow instead of sending an untested graphic straight to production.
Custom Bass Drum Head prints uploaded logos, photos, gradients, illustrations, and fine-line artwork onto premium bass drum heads, with front and batter options, live browser mockups, and custom mic-port placement. Visit Custom Bass Drum Head to upload the artwork, verify the size and geometry, and start building a stage-ready custom head.
